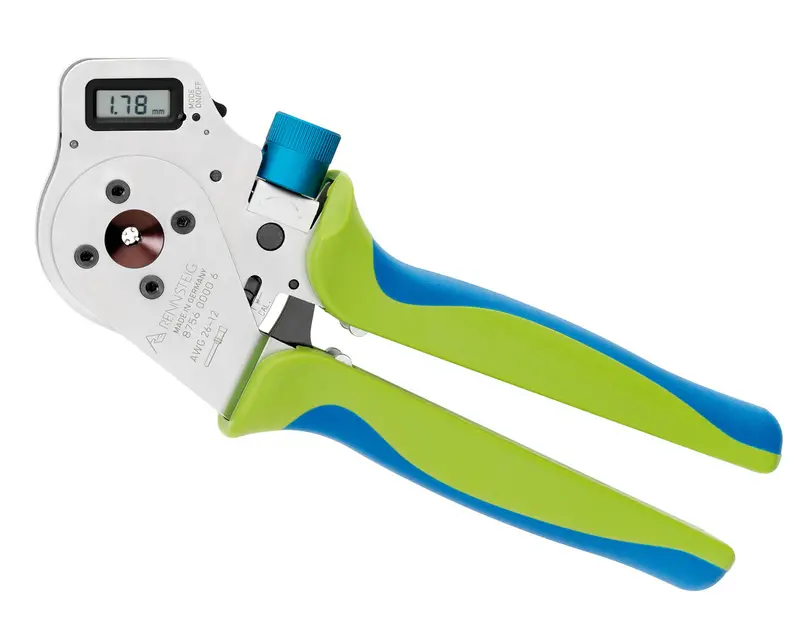

DigiCrimp® 72/73 4/8-Indent Circular Crimp Tool – MIL-SPEC M22520/7-01, No Locator (Model 8726 0000 61)

Description

• Digital crimping tool for crimping turned male and female contacts with an indenter geometry according to MIL 22520/7-01, MIL 22520/2-01 and MIL 22520/1-01
• MH860
• Indents adjustable in 0.01 mm increments, with digital reading
• Multifunctional digital display, with settings shown in mm, inches or MIL selector settings according to MIL 22520/7-01, MIL 22520/2-01 and MIL 22520/1-01
• Calibration and wear monitoring by means of enclosed gauge
• RESET function for recalibration
• Electronic wear monitoring with warning function
• Reliable crimping with force lock and synchronous crimp indenters movement
• Multiple information functions (remaining lifetime, number of calibrations, serial number)
• Rennsteig turrets and MIL turrets likewise usable

P/N		According to	Description	Capacity	Connector
8726 0000 61		M22520/7-01	Tool with MIL-indenters in plastic case without locator	AWG 28-14 (similar to 0.08-2.5mm)
